Specification:
- Other grades and specifications can be supplied
on request
- Bar Length (m): 2.0 ~ 6.0
- Bar Length Tolerance (mm): -0; +20
- Bar Weight: By Theoretical Weight
- Quantity Tolerance: +/- 10%
- Packing: <10mm; 0.5MT per Bundle & >10mm; 1.0MT per Bundle
|
|
|
|
|
|
|
PRODUCTS
COLD DRAWN & POLISHED STEEL BAR |
| Material Grade |
Profile |
Process |
Diameter
Range (mm) |
Tolerance |
| Mild Steel / Polished Shaft |
Round |
Cold drawn |
4.5~52.0 |
h9- ~ h11 / as per customer requirement |
| Ground |
4.5~52.0 |
| Hexagon |
Cold drawn |
5.0~25.4 |
| Square |
Cold drawn |
5.0~25.4 |
| Medium / High Carbon Steel |
Round |
Cold drawn |
4.5~52.0 |
| Ground |
4.5~52.0 |
| Hexagon |
Cold drawn |
5.0~25.4 |
| Square |
Cold drawn |
5.0~25.4 |
| Stainless Steel |
Round |
Cold drawn |
4.5~23.0 |
| Free Cutting Steel |
Round |
Cold drawn |
4.5~50.0 |
| Alloy Carbon Steel |
Round |
Cold drawn |
4.5~50.0 |
|
DIMENSION
TOLERANCE
| ISO h-tolerances |
Diameter and width across flats
(mm) |
Grade 9 (h9) |
Grade 10 (h10) |
Grade 11 (h11) |
up to & incl 3 |
0
-0.025 |
0
-0.040 |
0
-0.060 |
3<6 |
0
-0.030 |
0
-0.048 |
0
-0.075 |
6<10 |
0
-0.036 |
0
-0.058 |
0
-0.090 |
10<18 |
0
-0.043 |
0
-0.070 |
0
-0.110 |
18<30 |
0
-0.052 |
0
-0.084 |
0
-0.130 |
30<50 |
0
-0.062 |
0
-0.100 |
0
-0.160 |
50<80 |
0
-0.087 |
0
-0.120 |
0
-0.190 |
| ISO h-tolerances are always minus
tolerances. |
|
|
BAR

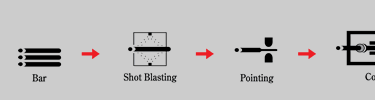

TO BAR PRODUCTION

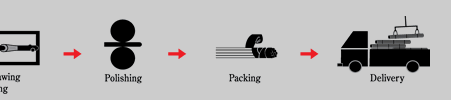

WIRE ROD TO BAR PRODUCTION |
